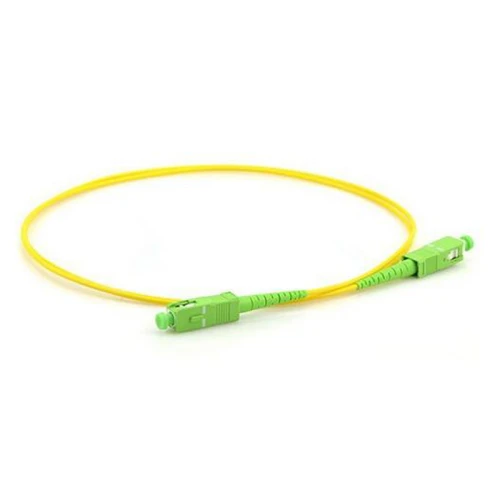

Patch Cord SC/APC-SC/APC-SM-SX-GJFJH/GJYXFCH-xxM
Patch Cord SC/APC-SC/APC-SM-SX-GJFJH/GJYXFCH-xxM
Patch Cord SC/APC-SC/APC-SM-SX-GJFJH/GJYXFCH-xxM
Patch Cord SC/APC-SC/APC-SM-SX-GJFJH/GJYXFCH-xxM
Model
SC/APC-SC/APC-SM-SX-GJFJH/GJYXFCH-xxM

Item specifics

Connector
SC/APC
Application
Network
OEM
Available

Review

Description

1.Product features(Fiber Optic Patch Cord)

• Low insertion loss and high return loss

• Excellent endface geometry parameter

• Special specificatiion availabel upon customer’srequest.


2.Applications

• Datatransmission Networks

• Imagetransmission Networks

• CATV

• Optical test instrument

• Photoelectricautomatic control system


3.Product Sketch Map

Patch Cord

Figure 1SC/APC-SC/APC-SM-SX

Remarks:1.“L”stands for the order length


4.Optical Performance

4.1 Optical performance index ofoptical fiber cable

Item

Unnit

Index

Cable cutoff wavelength

nm

1260

Bend radius

mm

30

Attenuation value

dB/km

0.361310nm≦0.251550nm

Flame retardancy

/

Accord with UL94-V0 standard

4.2 Optical performance index of connector

Item

Unnit

Index

Operating wavelength

nm

12601650

Insertion loss

dB

0.3

Return loss

dB

≥50

Repeatability

dB

0.1

Interchangeability

dB

0.2

Working temperature

-40+85

Enclosure 1Environmental performance of products

Project

Test condition

Index

Monitoring proportion

High temperature

85℃96H

ΔIL≤0.2dB

Random monitoring of WIP 5pcs

Low temperature

-40℃96H

ΔIL≤0.2dB

Loop

-40+85℃3.5H/Cycle40times loop

ΔIL≤0.2dB

Hot and humid

110℃90%RH2 atmospheric pressure96H

ΔIL≤0.2dB

Immersion

43ºC, PH5.5168H

ΔIL≤0.2dB

Enclosure2Mechanical properties of products

Project

Test condition

Index

Monitoring proportion

To attack

1.8m, three axial, 8 times / axial

ΔIL≤0.2dB

Random monitoring of WIP 5pcs

Vibration

10 to 50HZ, 45 times /min, amplitude 0.75mm, three axial. Each axial 30min

ΔIL≤0.2dB

Reverse

Distance machine 20 to 28cm, + 180 degrees, 6s/ times, 25 times

ΔIL≤0.2dB

tensile

The distance from the plug is 20 to 28cm, 1min, and the load is 50N

ΔIL≤0.2dB

Enclosure3Reference standard

1.Domestic standard

GB/T  12507.1-2000Fibre optic cableconnectors - Part 1: General specification

YD/T 1272.3-2005Optical fiber connector part third: SC

YD/T 2152-2010Optical fiber connector reliability requirements andtest methods

YD/T 1198-2002echnical requirements for ferrule of optical fiberactive connecto

YD/T 1258.1-2003Indoor cable series is the first part of the total

YD/T 1258.2-2003Indoor cable series second part single core opticalfiber


2.International standard:

GR-326-CORE General requirements for single-mode opticalfiber connectors and jumper assemblies
